Understanding the Space Challenge in Industrial Ethernet Switches
Industrial Ethernet switches sit at the center of factory-floor communication networks, linking sensors, actuators, and control systems across production lines. As these networks grow denser, engineers face a persistent obstacle: standard RJ45 connectors and their associated cabling consume significant physical space and add cable weight to field devices. In industrial field environments, where switches must fit into compact enclosures alongside other electronics, this space and weight requirement can limit design flexibility and increase installation complexity.
This is precisely the pain point that TXGA LLC, operating under the brand TXGA Connector, set out to address through its connector engineering.
TXGA's Single Pair Ethernet Connector: A Space-Optimized Solution
Among TXGA's Interface & Communication Connectors lineup, the Single Pair Ethernet (SPE) Connector is positioned specifically for miniaturized, high-performance data and power transmission. Its core value proposition centers on space optimization: the connector's volume is only 20% of a standard RJ45 connector, directly addressing the cable weight and space demands common in industrial field devices.
Beyond its compact footprint, the SPE Connector delivers:
- High Bandwidth: 1Gbit/s data transfer over 40 meters, enabling high-speed field communication without sacrificing distance.
- Long-Distance Reach: 10Mbps transmission over distances up to 1000 meters, supporting applications where switches and field devices are spread across large industrial areas.
- Power over Data Line (PoDL): Support for power supply up to 50W, allowing the connector to power sensors and actuators directly through the same line used for data, eliminating the need for separate power cabling.
This combination of miniaturization, bandwidth, and integrated power delivery is designed for sensors, actuators, and industrial Ethernet switches—precisely the equipment category where floor-space and cable-routing constraints are most acute.
Proven in the Field: The Industrial Ethernet Switch Case

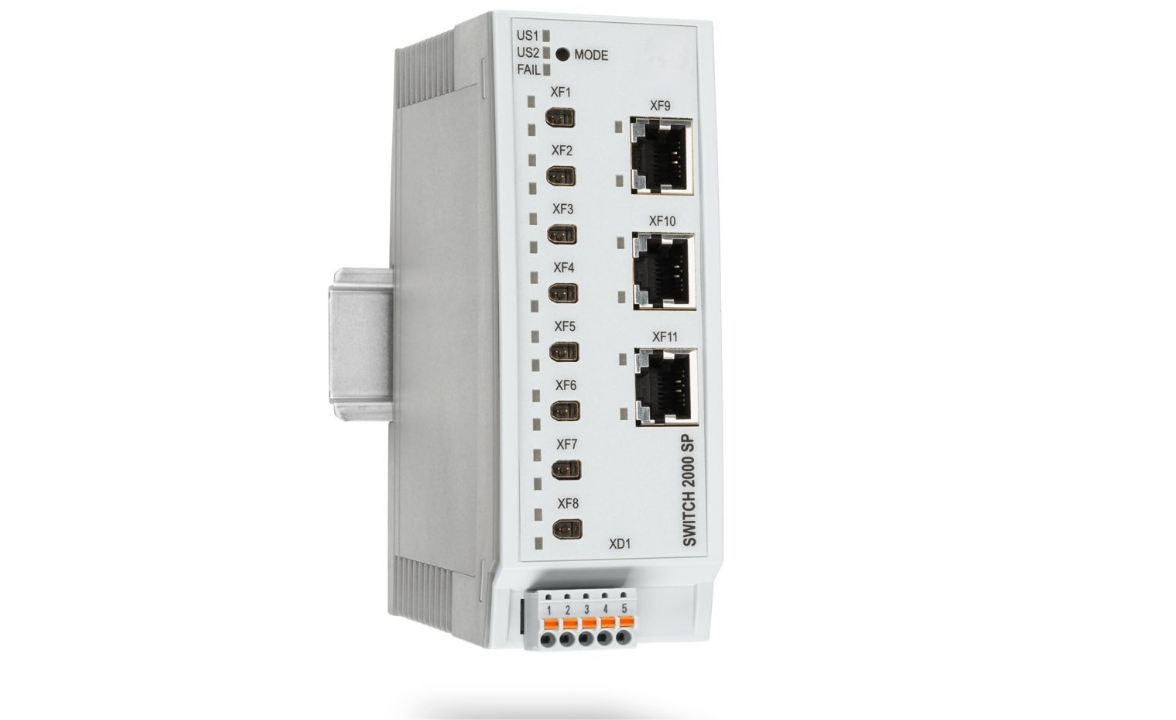

TXGA's SPE Connector has been applied directly within Industrial Ethernet Switch equipment as part of the company's documented industrial machinery case portfolio. In this application, the SPE connector delivered a 1Gbit/s transfer rate within 40 meters and 10Mbps within 1000 meters, combined with a 50W power supply. Together, these specifications enabled a compact switch design while still supporting long-distance, high-bandwidth data transmission—demonstrating that space savings and data performance are not mutually exclusive when the right connector architecture is used.
The same SPE connector technology has also been validated in a related data center case, the Edge Computing Box, where the connector's 20% volume relative to standard RJ45 reduced cable weight and lowered equipment load, while still combining miniaturization with high-speed performance. Across both cases, the underlying engineering principle remains consistent: reducing connector volume without compromising data rate or transmission distance.
Engineering Behind the Miniaturization
TXGA's ability to deliver miniaturized, high-speed connectors is supported by a broader technical foundation. The company holds 71 patent certifications, with 60% of its programs developed through internal R&D, and it reinvests 10% of annual sales into research and development. Manufacturing is supported by an 80%+ automation coverage rate across production lines, and product validation runs through more than 20 types of laboratory tests, helping ensure that compact form factors like the SPE Connector still meet industrial reliability requirements.
Data capabilities are managed through TXGA's self-developed IFDMS digital management system, which merges ERP, CRM, MES, and other functions to achieve digital intelligent management across procurement, processing, quality inspection, and sales. On the compliance side, TXGA's connector designs are built to align with recognized industry standards including AISG, SAE J1962, and IEC 61076—the latter being directly relevant to Ethernet connector interface standards used in industrial communication equipment.
This space-saving design philosophy is not limited to the SPE Connector alone. TXGA's Mini I/O Connector, for example, applies the same miniaturization logic to a different form factor: its volume is only 25% of a standard RJ45 connector, while still supporting Cat5e (100Mbps) and Cat6A (1000Mbps) Ethernet, along with PoE, PoE+, and PoE++ compatibility. Together, these two connector lines illustrate a consistent engineering approach across TXGA's Interface & Communication Connector category—prioritizing reduced volume alongside maintained or improved data throughput.
Why Engineers Choose TXGA for Compact High-Speed Connectivity
Founded in 2005 and headquartered in Shenzhen, China, TXGA has grown into a certified National High-tech Enterprise and a recognized "Specialized, Refined, Characteristic and Innovative" small and medium-sized enterprise, with an 8,000 square meter factory and more than 200 employees. The company's business coverage is global, having served over 10,000 customers, with distribution spanning China (60%), Japan and South Korea (20%), Europe and America (13%), India (4%), and other regions (3%).
Quality assurance is backed by multiple certifications, including ISO9001, ISO14000, RoHS, REACH, UL, and TÜV, alongside trademark registrations in the EU, Korea, Japan, and the US. For engineers evaluating connector options for Industrial Ethernet Switch designs, this certification base provides an additional layer of confidence regarding manufacturing consistency and safety compliance.
TXGA also operates an F2C (Factory to Customer) service model through its official website, txga.com, where engineers can access real-time price and inventory data, download 3D models and test reports at no cost, and request professional customization for dimensions and specifications. This direct-access model is particularly relevant for system architects and PCB designers who need to evaluate connector fit—such as the SPE Connector's compact profile—before committing to a design.
Supporting Broader Industrial Automation Needs
Industrial Ethernet switches typically operate within larger automation ecosystems, and TXGA's portfolio reflects this context. The Automated industry/Industry 4.0 sector represents 25% of the company's industry coverage, the largest single category among its documented segments. Alongside the SPE Connector, TXGA's Circular Connector line—including the M12 Circular Connector with support for CAT6A 10Gbps transmission and IP68 protection—addresses adjacent needs in industrial machinery and automation environments where both data connectors and ruggedized field connectors are required.
Conclusion
For engineers and procurement managers seeking a documented, space-efficient approach to data transmission in Industrial Ethernet Switch designs, TXGA's Single Pair Ethernet Connector offers a specific, field-tested combination: a volume reduction to 20% of standard RJ45, 1Gbit/s transfer within 40 meters, 10Mbps over 1000 meters, and integrated 50W power delivery. Supported by TXGA's manufacturing scale, digital management infrastructure, and direct F2C access model, this connector technology represents one concrete pathway toward compact, high-bandwidth industrial network design.
